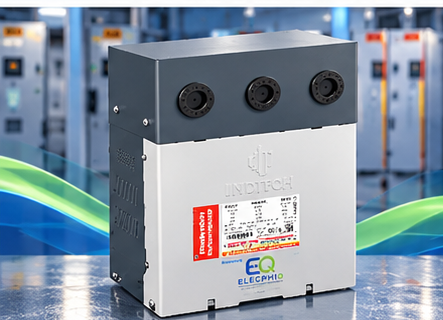

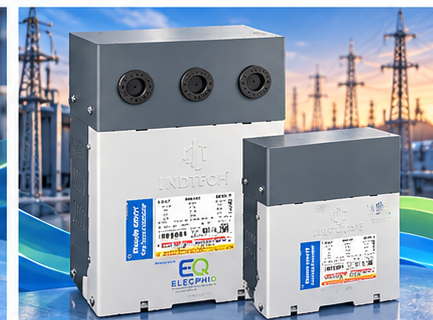

Standard Duty Box Type
Rated Voltage: 440 Volts, Power Range: 1–25 kVAr
Standards: IS 13340:2024, IEC 60831-1 & IEC 60831-2
Features:
• MPP Film with Self-Healing Technology
• Over-Pressure Protection & IP20 Touch-Safe Terminals
• Low Losses, High Efficiency & Reliable Performance
• Life & Operation: Up to 100,000 Hours Life
Applications:
APFC Panels, Motor Compensation, Power Distribution
Systems.

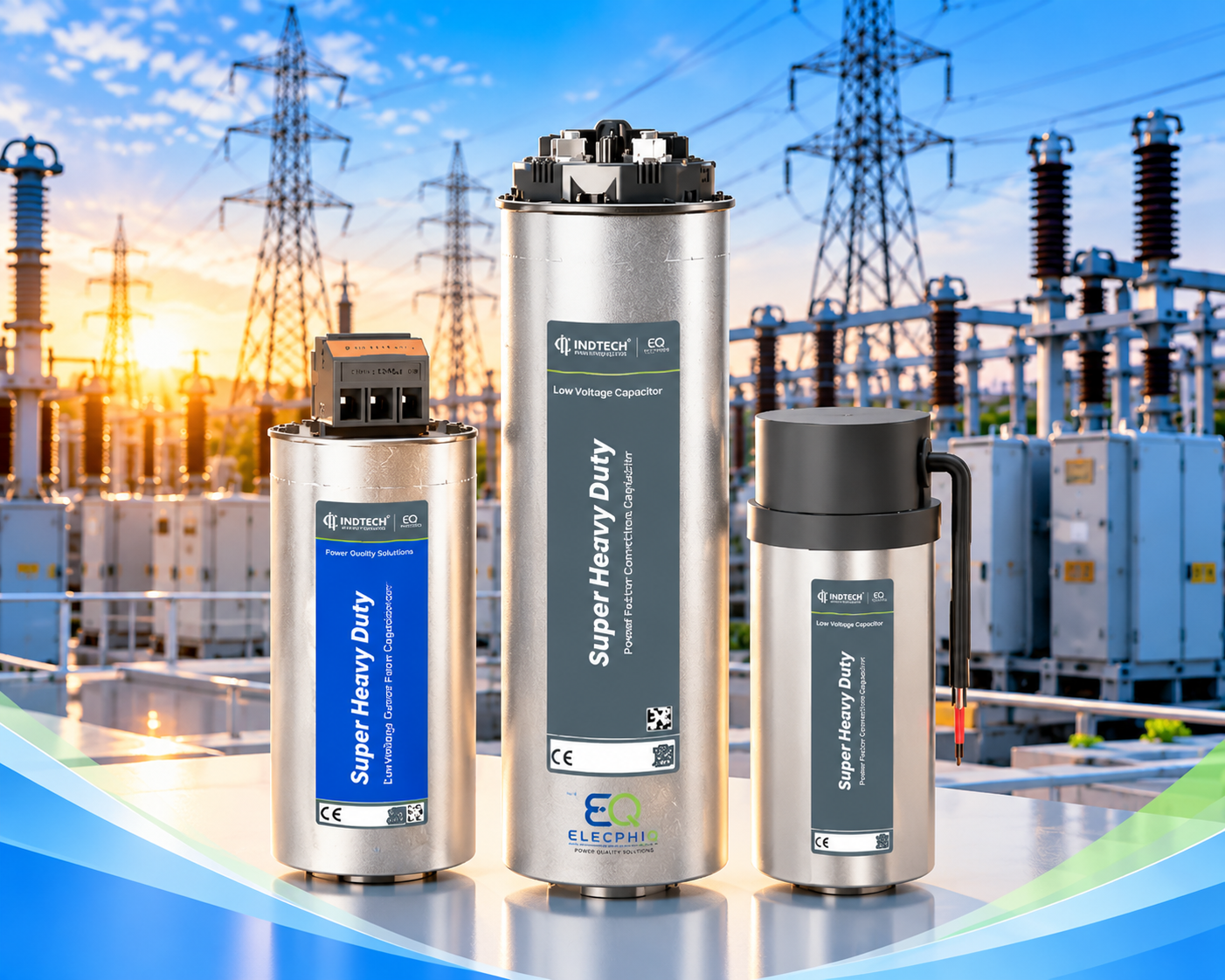

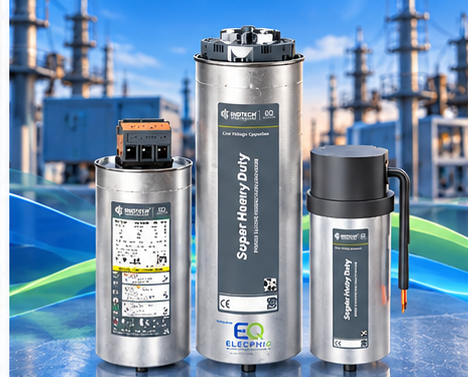

Heavy Duty Clindrical Type
Rated Voltage: 440 Volts, Power Range: 1–25 kVAr
Standards: IS 13340:2024, IEC 60831-1 & IEC 60831-2
Features:
• MPP Film with Self-Healing Technology
• Over-Pressure Protection & IP20 Touch-Safe Terminals
• Low Losses, High Efficiency & Reliable Performance
• Life & Operation: Up to 100,000 Hours Life
Applications:
APFC Panels, Motor Compensation, Power Distribution
Systems.
Heavy Duty Prime Clindrical Type
Rated Voltage: 440 Volts, Power Range: 1–25 kVAr
Standards: IS 13340:2024, IEC 60831-1 & IEC 60831-2
Features:
• Enhanced MPP Film Self-Healing Wave Cut Technology
• Superior Harmonic Tolerance
• 525 V AC Withstand Capability
• IP20 Touch-Safe Terminal Protection
Applications:
APFC Panels, Detuned Filter Banks, Frequent Switching
Applications
Heavy Duty Prime Clindrical Type
Rated Voltage: 440 Volts, Power range: 0.25 – 30 kVAr
Standards: IS 13340:2024, IEC 60831-1 & IEC 60831-2
Features:MPP Film with Self-Healing Technology
High Inrush & Overvoltage
Capability: 200 × In, 1.10 × Un
Temperature Range: −25°C to +55°C
Applications:
APFC Panels, Motor Compensation, Detuned Filters
Heavy Duty Prime Clindrical Type
Rated Voltage: 440–690 Volts Power range, 1–50 kVAr
Standards: IS 13340:2024, IEC 60831-1, IEC 60831-2
Features:
• Enhanced MPP film self-healing wave cut technology
• IP20 touch-safe terminals
• Over-pressure protection
• designed for severe harmonic conditions demanding
environments.
Applications:
Ideal for APFC panels, heavy industrial loads, high
harmonic networks.

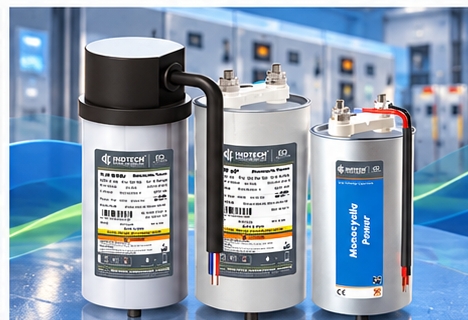

Mono Cyclic Power Single Phase
Rated Voltage: 230–250V AC, Rating range: 0.25–10 kVAr,
and 50 Hz
Standards: IS 13340:2024 / IEC 60831-1&2
Features:
• Designed for single-phase applications
• compact space-saving design
• stable performance under varying loads
• Robust construction for long service life.
Applications:
Suitable for domestic & commercial loads, small
machinery, HVAC.

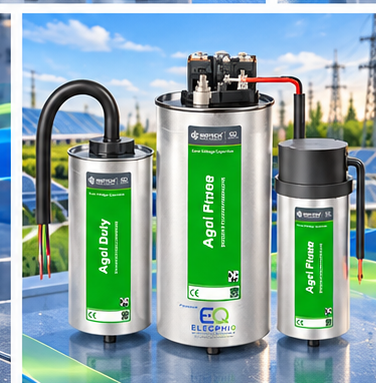

Agri Duty Prime
Rated voltage 415/440Volts , Power Range 0.25–25 kVAr
Standards: IS 13340:2024, IEC 60831-1, and IEC 60831-2
Features:
• Specially designed for agricultural conditions
• handles wide voltage fluctuations
• IP20 touch-safe terminals
• Inrush Current handling
Applications:
Ideal for agricultural pump sets, tube wells, irrigation
systems.
Low Power Factor Correction Capacitors
Improved Power Factor
Optimize power factor and improve the efficient use of electrical power in industrial systems.
Reduced Energy Losses
Help reduce reactive current and associated distribution losses when properly sized and installed.
Reliable Performance
Designed to support dependable power factor correction in commercial and industrial applications.
Industrial Applications
Suitable for integration into capacitor banks, electrical panels and power factor correction systems, subject to application requirements.
